Monday, May 31, 2010

Bug Trac-ing

I've been meaning to try out Trac for some time and decided this project would be a good excuse. After looking around for a bit, I found free Trac hosting at Assembla which seems to provide pretty decent free hosting. While I would have preferred it through a non-profit organization, I decided its not a big deal since I can just export the Trac database and move hosting if I like Trac and want to move hosting later. The uvudec bug tracking system can be found here. The system just has a few issues in it now and I'll be building up the database over time each time I see one of my XXX or FIXMEs in code.

Friday, May 14, 2010

uvromstat: statistical ROM image integrity testing

I've become aware of several different issues that can arise during ROM imaging. There are three main classes of errors I've come across:
-Blank or nearly blank ROM
-Missing address pin. Results in repeat blocks
-Bad selection switches, improper placement, or other read routing issues. With my Willem programmer anyway, this results in bad rips with several interesting, human recognizable properties. More on this later.
Blank ROMs are easy to detect. I do a simple frequency analysis. If only one byte showed up, its definitely blank. If below a certain threshold, defaulted to 16, I consider this a mostly blank ROM that is either severely damaged or otherwise poorly used. Frequency distribution from a nearly blank ROM:
Raw data looks something like this:
00000000 04 7f 25 7f 45 7f 7f 7f 04 7f 7f 7f 7f 7f 7f ff |..%.E...........|
00000010 04 7f 7f 7f 67 7f 7f ff 65 7f 7f ff 7f 7f 7f ff |....g...e.......|
00000020 04 7f 7f 7f 7f 7f 7f 7f 65 7f 7f 7f 7f 7f 7f ff |........e.......|
00000030 45 7f 7f 7f 7f 7f 7f ff 7f 7f 7f ff 7f ff 7f ff |E...............|
00000040 04 7f 7f 7f 7f 7f 7f 7f 45 7f 7f 7f 7f 7f 7f ff |........E.......|
00000050 45 7f 7f 7f 7f 7f 7f ff 7f 7f 7f ff 7f ff 7f ff |E...............|
Missing address pin is also fairly easy to detect. I'll assume that pins have been disconnected and will hold a value, say 0, when disconnected. I do not consider the case where it floats and randomly selects data. For the assumed behavior, just look for repeated blocks of data of size 2**n. For example, say the original data was 0123 4567 89AB CDEF. If the highest address pin was disconnected, we will get 0123 4567 0123 4567. If the second highest address pin was disconnected, you'd get 0123 0123 89AB 89AB. Both broken would result in 0123 0123 0123 0123.
For the last case , this can occur several ways. The first observed was when a 27C eprom was put into the flash socket by mistake. A separate adapter board is actually required to rip 27C PLCC32 chips. Additionally, similar output appears for some reason I have yet to look into when no chip is inserted into the Willem and told to rip anyway. An excert from such a rip of a 27C put into the flash socket on a Willem:
000003d0 d5 d5 00 00 d5 d5 00 00 d6 d6 00 00 d7 d7 00 00 |................|
000003e0 e0 e0 00 00 e1 e1 00 00 e2 e2 00 00 e2 e2 00 00 |................|
000003f0 e3 e3 00 00 e4 e4 00 00 e5 e5 00 00 e6 e6 00 00 |................|
00000400 04 06 04 06 04 06 04 06 04 06 04 06 04 06 04 06 |................|
00000500 14 16 14 16 14 16 14 16 14 16 14 16 14 16 14 16 |................|
00000600 04 06 04 06 04 06 04 06 04 06 04 06 04 06 04 06 |................|
00000700 14 16 14 16 14 16 14 16 14 16 14 16 14 16 14 16 |................|
Graphical frequency analysis (optional command line option that uses gnuplot-python) showed some obvious trends on such chips:

These chips skip frequencies in blocks. In the first one, the first 8 bytes are represented, the second 8 aren't. This continues for the rest of the set. The same trend is seen in the second one, but with a block size of 128 instead of 8.
These algorithms are being developed in util/uvromstat/ (UVet ROM STATistics). Here are some of the ones it detected:
[mcmaster@gespenst ROM]$ uvromstat $(find . -name '*.bin' |fgrep -v .svn) |fgrep ERROR
./buffer/quantum_first_prob_bad.bin: ERROR: expect did not position for rip correctly! (27C check)
./buffer/quantum_first_prob_bad.bin: ERROR: block size: 16
./buffer/prompro7_junk/27C512_IBM_sticker.bin: ERROR: expect did not position for rip correctly! (27C check)
./buffer/prompro7_junk/27C512_IBM_sticker.bin: ERROR: block size: 256
./buffer/prompro7_junk/27C512_IBM_sticker.bin: ERROR: an address pin is probably missing
./buffer/prompro7_junk/27C512_IBM_sticker.bin: ERROR: repeated block size: 0x2000 (8192), address bit: 0x000D (13)
./buffer/prompro7_junk/2732_1.bin: ERROR: few distinct numbers, expect nearly blank
./buffer/prompro7_junk/2732_1.bin: ERROR: expect did not position for rip correctly! (27C check)
./buffer/prompro7_junk/2732_1.bin: ERROR: block size: 8
./buffer/prompro7_junk/27C256_0.bin: ERROR: an address pin is probably missing
./buffer/prompro7_junk/27C256_0.bin: ERROR: repeated block size: 0x2000 (8192), address bit: 0x000D (13)
./buffer/prompro7_junk/27C256_0.bin: ERROR: an address pin is probably missing
./buffer/prompro7_junk/27C256_0.bin: ERROR: repeated block size: 0x4000 (16384), address bit: 0x000E (14)
./arch/8051/80C32/cisco_catalyst_5000__supervisor_I/80C32.bin: ERROR: an address pin is probably missing
./arch/8051/80C32/cisco_catalyst_5000__supervisor_I/80C32.bin: ERROR: repeated block size: 0x20000 (131072), address bit: 0x0011 (17)
Another thing to note is that if one check fails, other might as well. This did in fact discover several images that I didn't realize had issues. The Catalyst 5000 image I had recognized during my initial rip was having issues. I was using a breadboarded ripper at the time and could not figure out why the image appeared to repeat twice. It is possible that I messed something up and would double check with the WIllem now, but it appears that is the only chip out of the set from that board I didn't keep. In any case, it does appear to be unused at the end, so the image is not likely truncated.
In conclusion, even a simple utility has proven useful for discovering bad rips. When I rip ROMs in the future, I'll try to run them through it to discover common issues before I throw the ROM away.

Thursday, May 13, 2010

ROM ripping rampage

When I bought the PromPro-7, it came with a lot of EPROM and related MCU chips. Unfortunately, the picture of it didn't migrate over when I switched accounts with this blog and I can't find the original picture. Since the PromPro-7 didn't work very well, they never got ripped. Although I really wasn't looking to get a parallel port unit, I finally got the tried and true Willem programmer since other things weren't working out. My Linux file server hasn't been up for a while since the software only works in Windows and I didn't feel like reconfiguring all of my shares and drives.
In addition to the chips the Prompro 7 came with, I've had a bunch of other boards and chips laying about my room. The largest was probably a stack of boards from a Siemens PBX that was thrown out and I got to torture. One of the first stumbling blocks I encountered from this was that there was a 1Mb EPROM on it. This is an issue since the stock Willem programmer can only handle 512Kb EPROMs. So, I ordered an adapter board and ripped it. I had a few other large EPROMs, so this turned out to be a good idea. One notable was from a Rockwell Collins Pro 2000-SL transciever/GPS unit that I found cheap ($20 shipped) on eBay a bit back. This unit should prove interesting for a variety of RE purposes since it seems to be military grade. Here is a picture of it:
The until is composed of 4 main board assemblies: power supply (+module), CPU board, GPS translator, and GPS. The GPS translator board is the only board that contained an easily accessible (socketed) ROM:
ROM data like GPS_SOLUTION_LOCK gives it a military feel. A 28F flash chip is also visible. Especially since I broke some of the flimsy cables on the PSU module, I might just rip the unit to shreds and rip all of the chips since its probably a better use of time than getting the unit running anyway. With some luck, there will be assorted ASICs using rare standard cell libraries that I can submit to Silicon Zoo.
There are several types of chips that are still in my rip queues though. The first are 24C SOIC EPROMs. This is what a small group of us has been doing to experiment with some radio units we've been messing with. Hopefully, more on that later as it develops. Although I have some adapter boards, I don't feel like soldering to them each time I want a clean rip. I might be able to get away with just gently placing them on the pads, but really I need a ZIF socket. I'll hopefully be ordering 150 mil and 200 mil SOIC8 compatible (probably SOIC16 and I'll just slide it into position as needed) ZIF sockets.
The second type are 27C PLCC32 type EPROMs. I didn't realize originally that I needed a seperate adapter for those and that the flash sockets wouldn't work for those. Next, I have the stack of MCS-48 combo MCU/EPROM ICs that also require an adapter to work with the Willem. Finally, I have some Altera ROMs I'm trying to rip. The bus pirate might be a good choice, but I actually have some old Altera programmers (Altera Programming Units (APU)) that I was hoping would be a nice way to rip them. Unfortunatly, it seems I can't see to read the ROMs unless I setup a project or something. Lame. Maybe there is a better behaved command line utility in the suite or I can port the code to an open source Linux program.
Of all of the boards and ROMs I've ripped, my favorite so far has come from an IBM RS/6000 43P Model 260. In one of the ROMs, I found the string:
16-6, Go Horns !
Take that, Dave
Probably thought that nobody would ever read that. This ROM I think was labeled 0373.

Saturday, May 8, 2010

Install magic and RCOS goes 1337

I did a small amount of work to make a basic installable form. Although the project is prepped for automake, I haven't bothered with that yet and I'm not sure when I will. That aside, this is what I did.
Default install location is to /opt/uvudec/. A symlink is also created /opt/uvudec/current to the last installed version. This then contains a bin and an arch directory. The bin directory contains the executable binaries and library files necessary to run uvudec. The arch dir contains the architecture configuration files that are used to parse binaries into intermediate representation. I might like to later move the libraries into a lib dir instead, but this is a minor change. The biggest issue right now is that if a dynamic build is used, they need to know how to find them. I personally don't like using rpath because its hard to change without specialized tools. I'd consider LD_LIBRARY_PATH, but that has its own set of issues. The main one is that I'd have to have helper scripts or such to set it, which is also somewhat annoying. However, this is the approach many enterprise grade installable Linux software packages such as Firefox take and I will probably do that eventually.
Using makefile configuration variables and later through autoconf, you can do the standard PREFIX and such that allows you to install applications to the directory of choice. However, I personally like programs that I can shove in any folder on the hard drive and still work without hard coded paths. So, I added some detection of where the executable is and derrive the install directory from that.

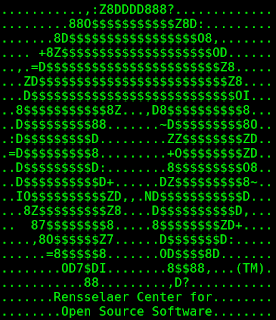

On a random note, in honor of RCOS, I added a second random ASCII art choice to the --useless-ascii-art option (the first is a UVNet logo). Using an ASCII art generator at , I made a 40 X 40 char ASCII art RCOS logo and then cleaned it up a bit. Here is the current art:
I might remove the dots and leave as white space instead.
